A/T
OFF-ROAD

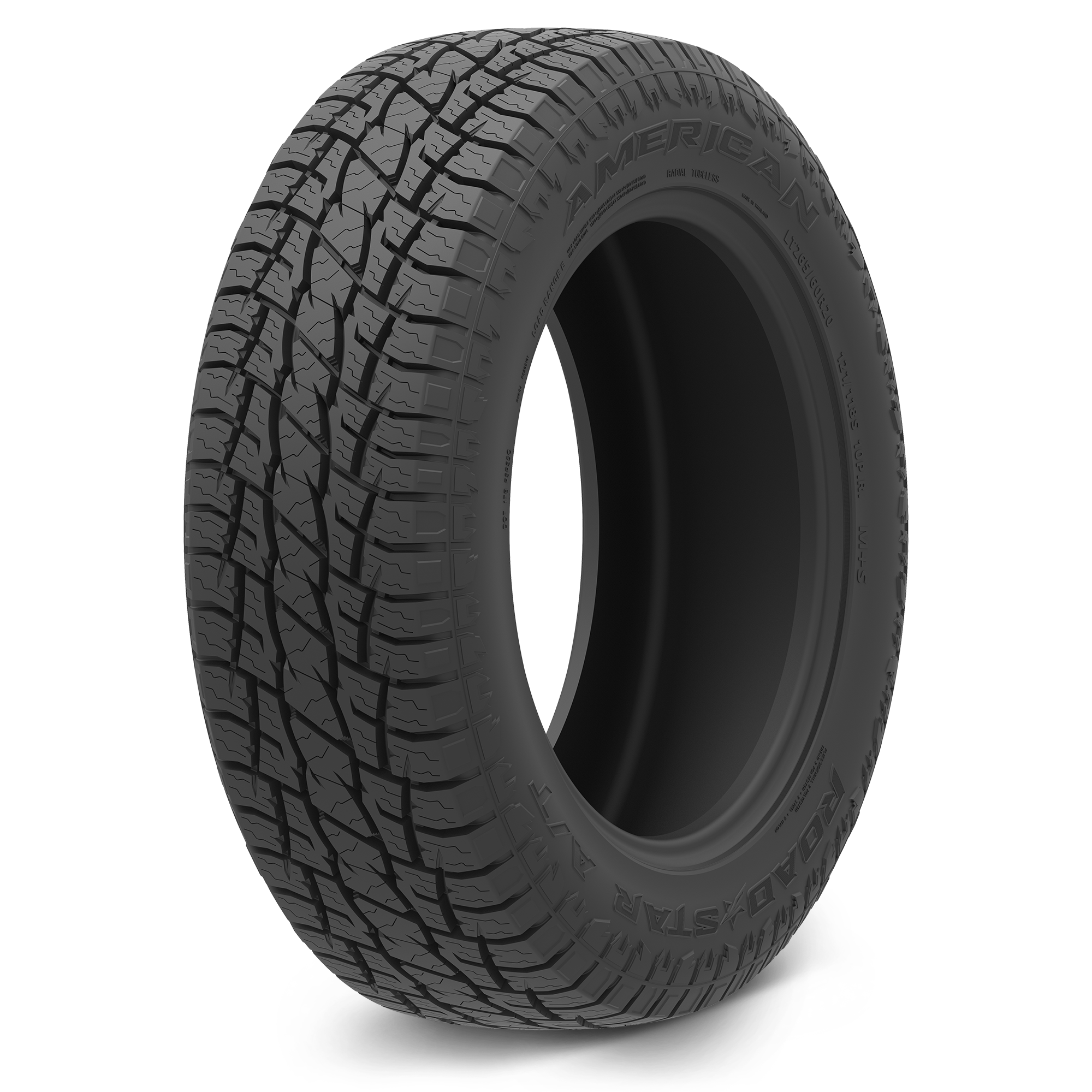

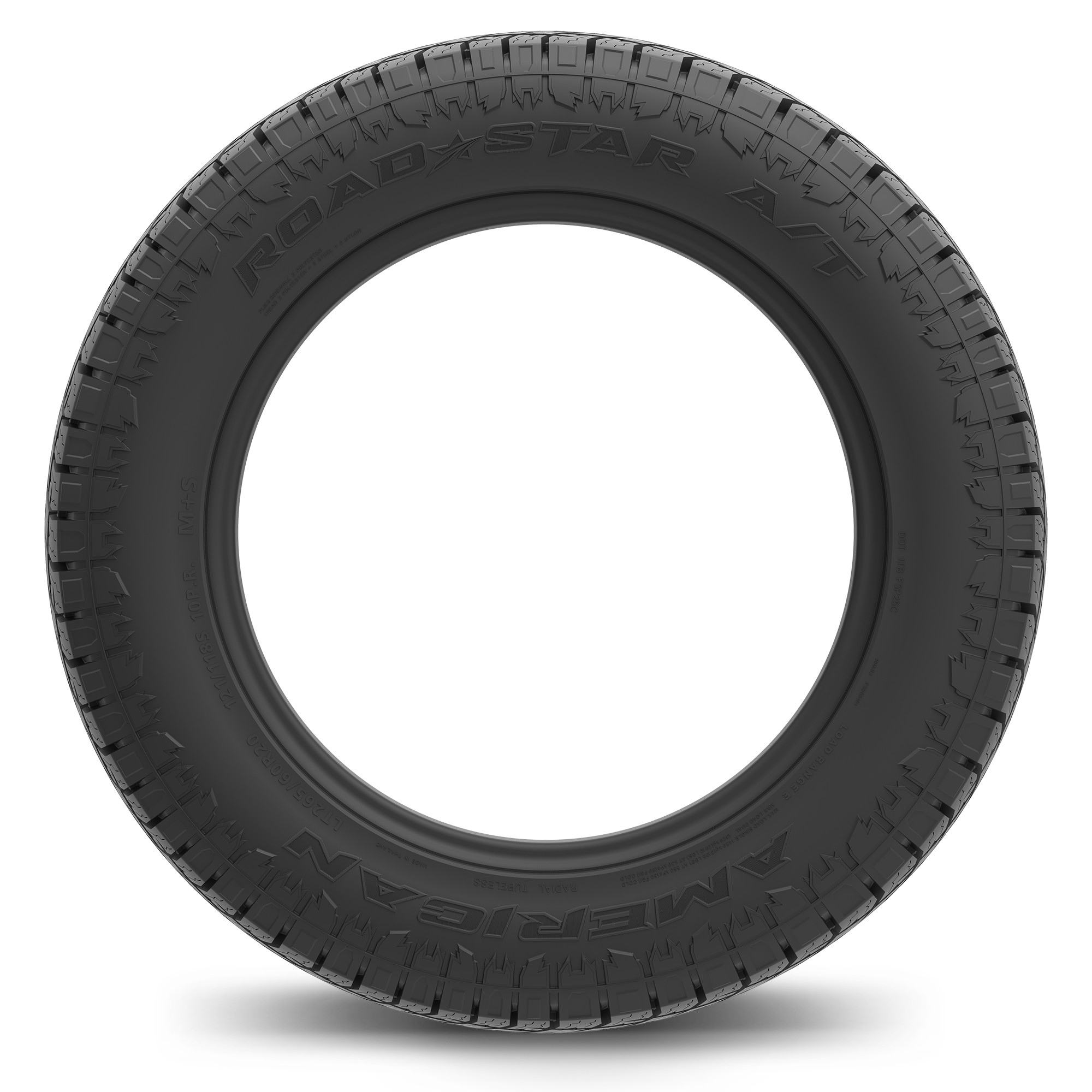

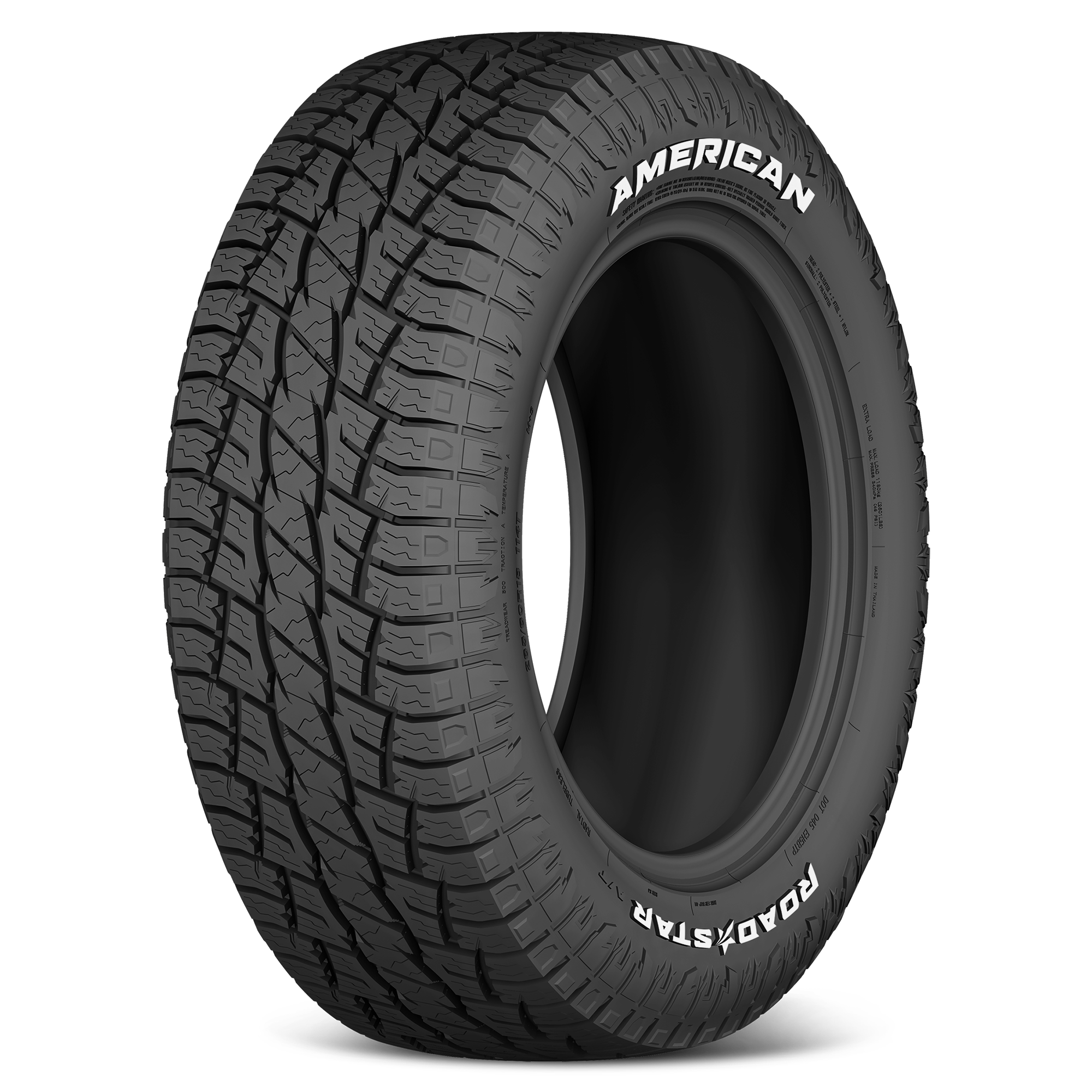

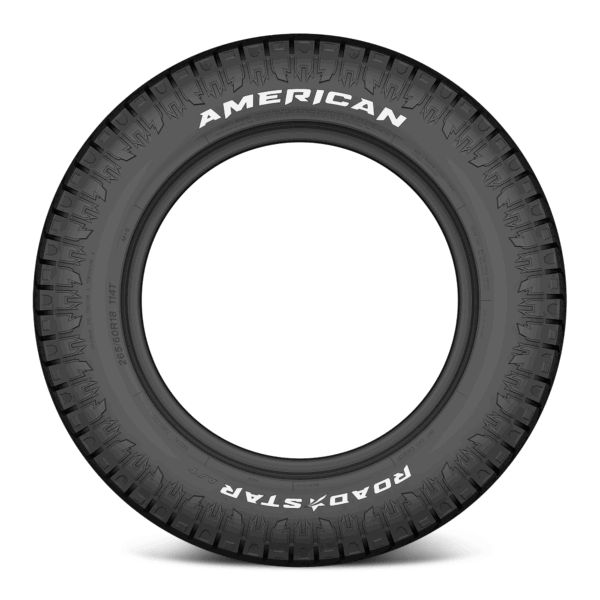

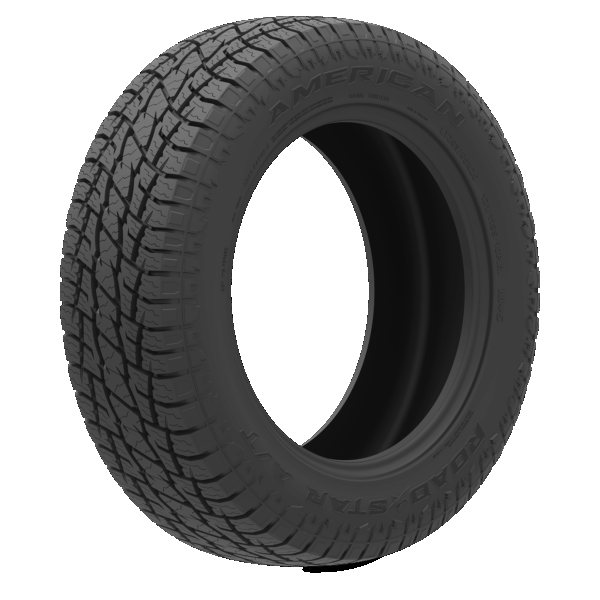

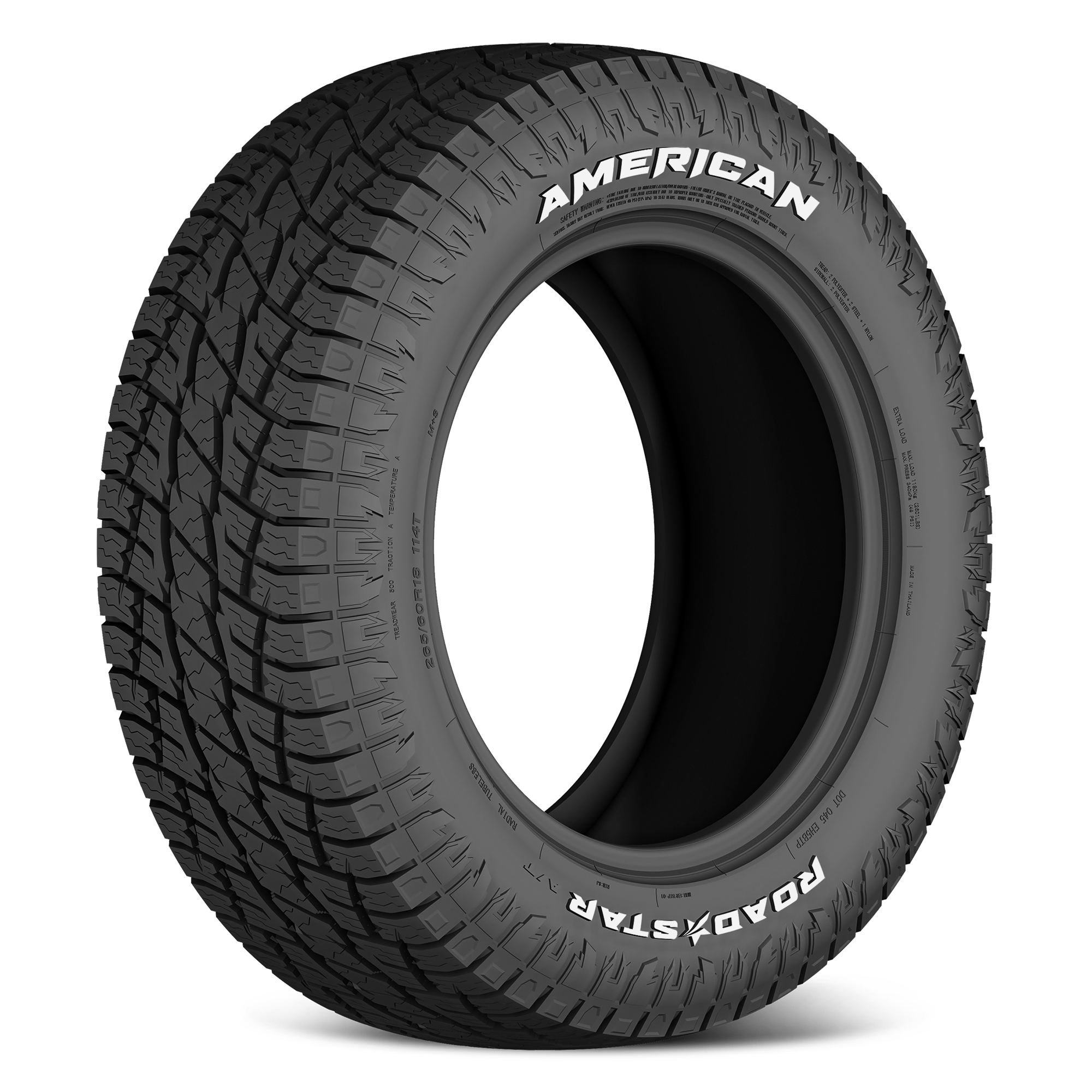

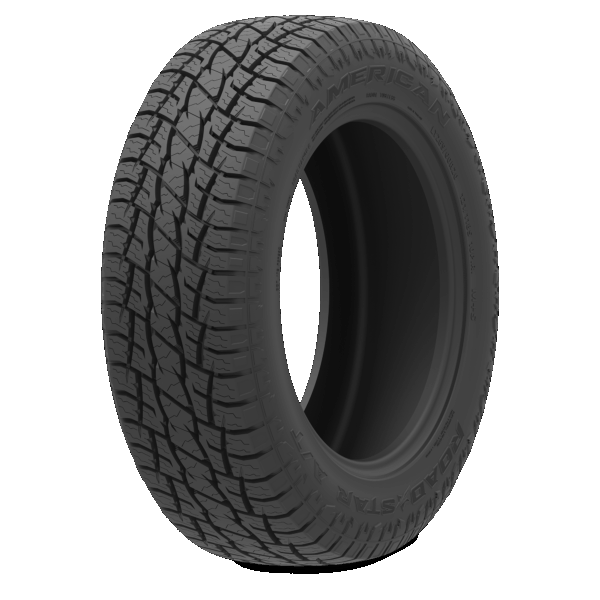

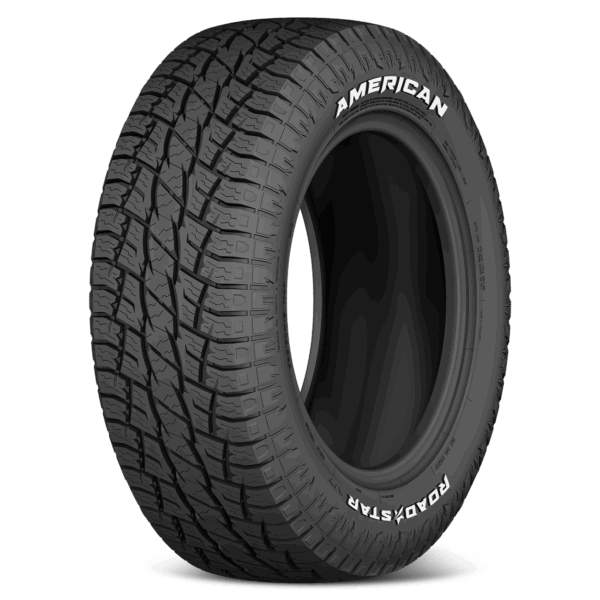

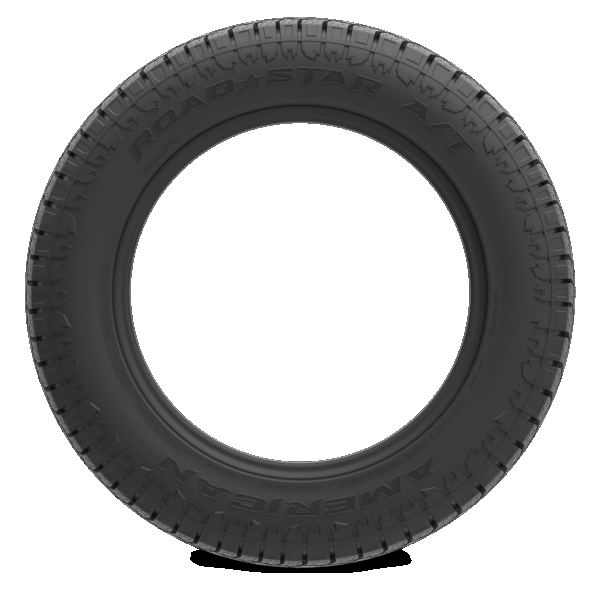

The American Roadstar A/T is an all terrain, all season tire manufactured for SUVs and light trucks. These tires promotes great all weather traction. The staggered tread blocks and the optimal tread design enhance the dry, wet and winter weather road gripping ability. The compound keeps the rubber flexibility in various temperatures, while the tread upgrades the grip on the road surface. As a result, the tire guarantees a secure driving experience in all weather.
More Information
-
Strong Pattern Block Design Strong central pattern blocks ensure stable handling performance and powerful control force under off-road conditions. Rugged blocks can prevent cutting, scratching and impact damage. -Solid Square Shoulder Strong shoulder provide adequate dry traction and turning performance.
-
Excellent Drainage Performance Four wide longitudinal grooves can evacuate water effectively, enhance handling and steering on wet road surface. -Special Multi-Angle Sipe Design Irregular sipes design can reduce noise and improve grip on snow-covered roads effectively, to ensure excellent control performance.
SIZES AND SPECS
| Diameter | Tire Size | Part Number | Aspect Ratio | Section Width | Load Index | Ply | Rim Width | Max Inflation | Max Load | Tread Depth | Overall Dia | UTQG | UPC | EAN | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | ||||||||||||||||||||||
| IN | MM | European standard | American standard | REC | Kpa | Psi | kg | lbs | kg | Ibs | 32nd | IN | MM | IN | |||||||||
| 15 | 31×10.50R15LT | ARSAT01 | 10.5 | 10.5511811 | 268 | 109S | 6PR/LRC | / | 7.0-8.5-9.0 | 8 1/2J | 350 | 50 | 1030 | 2270.00 | / | / | 16.12598425 | 12.8 | 775 | 30.51181102 | / | 841623137748 | 0841623137748 |
| 16 | LT245/75R16 | ARSAT02 | 75 | 9.763779528 | 248 | 120/116R | 10PR/LRE | / | 6.5-7.0-8.0 | 7J | 550 | 80 | 1380 | 3042.00 | 1260 | 2778 | 16.12598425 | 12.8 | 774 | 30.47244094 | / | 841623137670 | 0841623137670 |
| 265/70R16 | ARSAT03 | 70 | 10.70866142 | 272 | 112T | / | 7.0-8.0-9.0 | 7.0-8.0-9.0 | 8J | 300 | 44 | 1120 | 2469.00 | / | / | 13.1023622 | 10.4 | 778 | 30.62992126 | 500 A A | 841623137779 | 0841623137779 | |
| LT265/75R16 | ARSAT04 | 75 | 10.51181102 | 267 | 123/120R | 10PR/LRE | / | 7.0-7.5-9.0 | 7 1/2J | 550 | 80 | 1550 | 3415.00 | 1400 | 3085 | 16.12598425 | 12.8 | 804 | 31.65354331 | / | 841623137724 | 0841623137724 | |
| LT285/75R16 | ARSAT05 | 75 | 11.25984252 | 286 | 126/123R | 10PR/LRE | / | 7.5-8.0-9.5 | 8J | 550 | 80 | 1700 | 3750.00 | 1550 | 3415 | 17.25984252 | 13.7 | 834 | 32.83464567 | / | 841623137755 | 0841623137755 | |
| 17 | LT245/75R17 | ARSAT20 | 75 | 9.763779528 | 248 | 121/118_S | 10PR/LRE | / | 6.5-7.0-8.0 | 7J | 550 | 80 | 1450 | 3195.00 | 1320 | 2910 | 16.12598425 | 12.8 | 800 | 31.49606299 | / | 841623136789 | 0841623136789 |
| 245/75R17 | ARSAT24 | 75 | 9.763779528 | 248 | 110H | - | 6.5-7.0-8.0 | 6.5-7.0-8.0 | 7J | 300 | 44 | 1060 | / | / | 13.1023622 | 10.4 | 800 | 31.49606299 | 500 | 500 A A | 841623152239 | 0841623152239 | |
| 255/75R17 | ARSAT06 | 75 | 10.03937008 | 255 | 115T | - | 6.5-7.0-8.5 | 6.5-7.0-8.5 | 7J | 300 | 44 | 1215 | 2679.00 | - | - | 13.1023622 | 10.4 | 814 | 32.04724409 | 500 A A | 841623139698 | 0841623139698 | |
| 265/65R17 | ARSAT07 | 65 | 10.70866142 | 272 | 116T | - | 7.5-8.0-9.5 | 7.5-8.0-9.5 | 8J | 340 | 50 | 1250 | 2756.00 | - | - | 13.1023622 | 10.4 | 776 | 30.5511811 | 500 A A | 841623139704 | 0841623139704 | |
| 265/70R17 | ARSAT08 | 0 | 10.70866142 | 272 | 113T | / | 7.0-8.0-9.0 | 7.0-8.0-9.0 | 8J | 300 | 44 | 1150 | 2535.00 | - | - | 13.1023622 | 10.4 | 804 | 31.65354331 | 500 A A | 841623137663 | 0841623137663 | |
| LT265/70R17 | ARSAT09 | 70 | 10.70866142 | 272 | 121/118S | 10PR/LRE | / | 7.0-8.0-9.0 | 8J | 550 | 80 | 1450 | 3195.00 | 1320 | 2910 | 16.12598425 | 12.8 | 804 | 31.65354331 | / | 841623137717 | 0841623137717 | |
| LT285/70R17 | ARSAT10 | 70 | 11.49606299 | 292 | 121/118Q | 10PR/LRE | / | 7.5-8.5-9.5 | 8 1/2J | 550 | 80 | 1450 | 3195.00 | 1320 | 2910 | 17.25984252 | 13.7 | 832 | 32.75590551 | / | 841623137809 | 0841623137809 | |
| 18 | 265/65R18 | ARSAT11 | 65 | 10.70866142 | 272 | 114H | - | 7.5-8.0-9.5 | 7.5-8.0-9.5 | 8J | 300 | 44 | 1180 | 2601.00 | - | - | 13.1023622 | 10.4 | 801 | 31.53543307 | 500 A A | 841623139711 | 0841623139711 |
| LT265/70R18 | ARSAT22 | 70 | 10.70866142 | 272 | 124/121_S | 10PR/LRE | / | 7.0-8.0-9.0 | 8J | 550 | 80 | 1600 | 3527.00 | 1450 | 3197 | 16.12598425 | 12.8 | 829 | 32.63779528 | / | 841623137717 | 0841623137717 | |
| 275/65R18 | ARSAT12 | 65 | 10.98425197 | 279 | 114T | / | 7.5-8.0-9.5 | 7.5-8.0-9.5 | 8J | 300 | 44 | 1180 | 2601.41 | - | - | 13.1023622 | 10.4 | 815 | 32.08661417 | 500 A A | 841623137694 | 0841623137694 | |
| LT275/65R18 | ARSAT25 | 65 | 10.98425197 | 279 | 123/120_S | 10PR/LRE | / | 8.0-9.5 | 8J | 550 | 80 | 1550 | 3417.00 | 1400 | 3086 | 14.48818898 | 11.5 | 815 | 32.08661417 | / | 841623152246 | 0841623152246 | |
| LT275/70R18 | ARSAT13 | 70 | 10.98425197 | 279 | 125/122S | 10PR/LRE | / | 7.0-8.0-9.0 | 8J | 550 | 80 | 1650 | 3640.00 | 1500 | 3305 | 16.12598425 | 12.8 | 843 | 33.18897638 | / | 841623137762 | 0841623137762 | |
| 20 | LT265/60R20 | ARSAT19 | 60 | 10.70866142 | 272 | 121/118_S | 10PR/LRE | / | 8.0-9.5 | 8J | 550 | 80 | 1450 | 3197.00 | 1320 | 2910 | 16.12598425 | 12.8 | 826 | 32.51968504 | / | 841623139827 | 0841623139827 |
| 275/55R20 | ARSAT14 | 55 | 11.18110236 | 284 | 117H | / | 7.5-8.5-9.5 | 7.5-8.5-9.5 | 8 1/2J | 340 | 49 | 1285 | 2833.00 | / | / | 13.1023622 | 10.4 | 810 | 31.88976378 | 500 A A | 841623137700 | 0841623137700 | |
| 275/60R20 | ARSAT15 | 60 | 10.98425197 | 279 | 119H | / | 7.5-8.0-9.5 | 7.5-8.0-9.5 | 8J | 340 | 49 | 1360 | 2998.24 | / | / | 13.1023622 | 10.4 | 838 | 32.99212598 | 500AA | 841623137793 | 0841623137793 | |
| LT275/65R20 | ARSAT16 | 65 | 10.98425197 | 279 | 126/123S | 10PR/LRE | / | 8.0-9.5 | 8J | 550 | 80 | 1700 | 3750.00 | 1550 | 3415 | 16.12598425 | 12.8 | 866 | 34.09448819 | / | 841623137786 | 0841623137786 | |
| LT285/55R20 | ARSAT17 | 55 | 11.69291339 | 297 | 122/119S | 10PR/LRE | / | 8.5-9.0-10.0 | 9J | 550 | 80 | 1500 | 3305.00 | 1360 | 3000 | 15.7480315 | 12.5 | 822 | 32.36220472 | / | 841623137731 | 0841623137731 | |
| 285/45R22 | ARSAT18 | 45 | 11.22047244 | 285 | 116H | / | 9.0-9.5-10.5 | 9.0-9.5-10.5 | 9 1/2J | 340 | 49 | 1250 | 2756.00 | - | - | 12.5984252 | 10 | 815 | 32.08661417 | 500AA | 841623137687 | 0841623137687 | |
